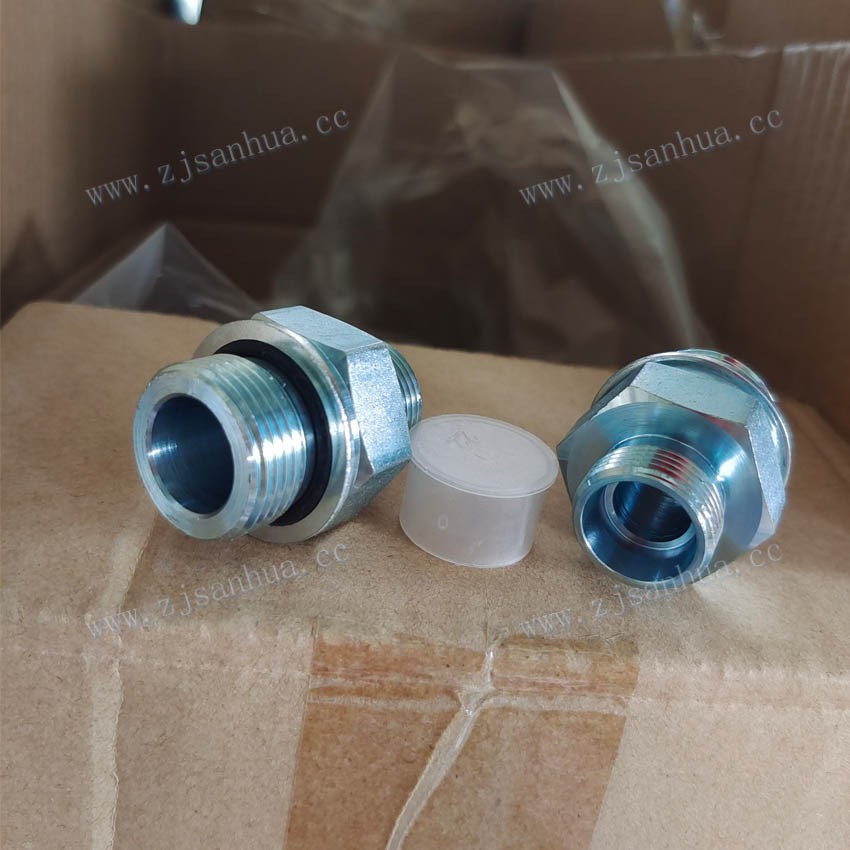

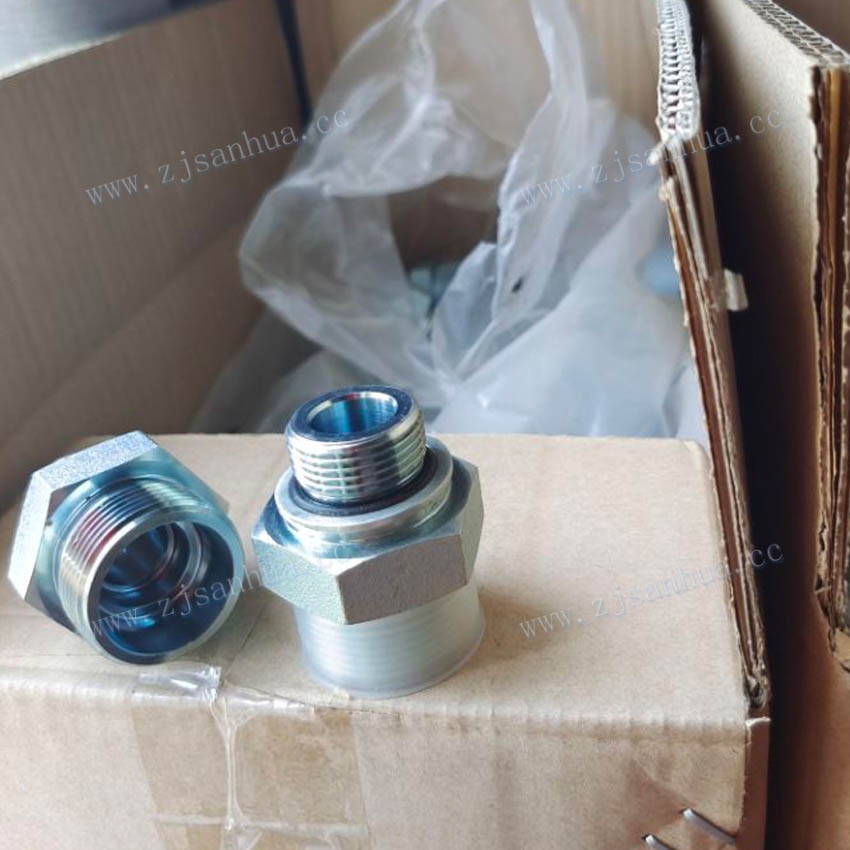

BSP THREAD STUD ENDS WITH O-RING SEALING

代号

PART NO.

螺 纹  THREAD

管子外径  TUBE O.D.

尺 寸  DIMENSIONS

E

F

D1

B

I1

L1

S1

S2

1CG-12-02

M12×1.5

G1/8"×28

6

9.5

8.5

23

14

14

1CG-12-04

M12×1.5

G1/4"×19

6

10

10

25

19

14

1CG-14-04

M14×1.5

G1/4"×19

8

10

10

25

19

17

1CG-14-06

M14×1.5

G3/8"×19

8

11.5

11.5

26

22

17

1CG-14-08

M14×1.5

G1/2"×14

8

14

13

27.5

27

34

1CG-16-04

M16×1.5

G1/4"×19

10

10

11

26

19

19

1CG-16-06

M16×1.5

G3/8"×19

10

11.5

12.5

27

22

19

1CG-16-08

M16×1.5

G1/2"×14

10

14

14

29

27

19

1CG-18-06

M18×1.5

G3/8"×19

12

11.5

12.5

27

22

22

1CG-18-08

M18×1.5

G1/2"×14

12

14

13

28

27

22

1CG-22-06

M22×1.5

G3/8"×19

15

11.5

13.5

29

24

27

1CG-22-08

M22×1.5

G1/2"×14

15

14

14

29

27

27

1CG-22-12

M22×1.5

G3/4"×14

15

15.5

20

30

32

32

1CG-26-08

M26×1.5

G1/2"×14

18

14

14.5

31

27

32

1CG-26-12

M26×1.5

G3/4"×14

18

15.5

14.5

32

32

32

1CG-30-12

M30×2

G3/4"×14

22

15.5

16.5

33

32

36

1CG-30-16

M30×2

G1"×11

22

18

17.5

35

41

36

1CG-36-16

M36×2

G1"×11

28

18

17.5

34

41

41

1CG-45-20

M45×2

G1.1/4"×11

35

20

17.5

39

50

50

1CG-52-20

M52×2

G1.1/4"×11

42

20

19

42

55

60

1CG-52-24Tags: BSP THREAD STUD ENDS WITH O-RING SEALING
